Transformations & Symmetry - Lesson 1-6
Today, we went over a lot of notes! We started with the following warmup:
![Warmup](Warmup.jpg)
Hopefully, you can find the measure of the angle to be 90°!

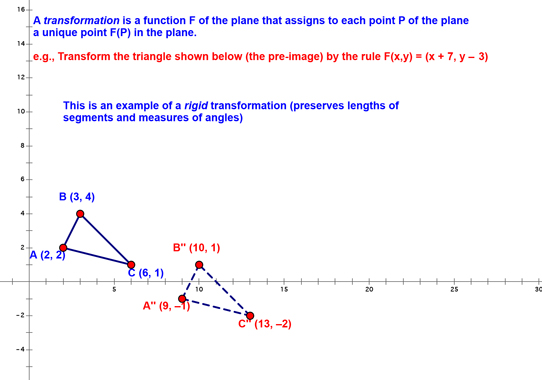

We then started the lesson...we started by defining a rigid transformation and showing an example:
![Defn of Rigid Transformation](RigidTrans.jpg)

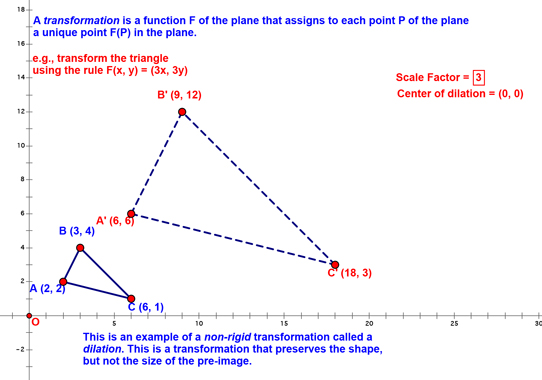

Next, we talked about a non-rigid transformation and showed an example...something called a dilation.
![Dilation](Dilation.jpg)

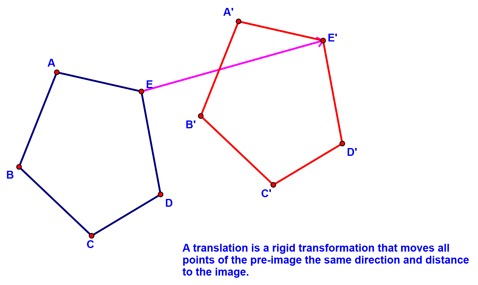

At this point, I told you that we would only be studying rigid transformations this year! Of these, there are three types you'll need to know: translations, rotations, and reflections. We started by defining a translation:
![Translation](Translation.jpg)

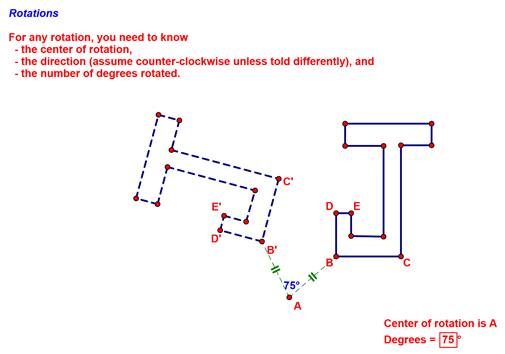

Next, we moved to defining rotations. For these, we noted a few things we needed to know:
![Rotations](Rotations.jpg)

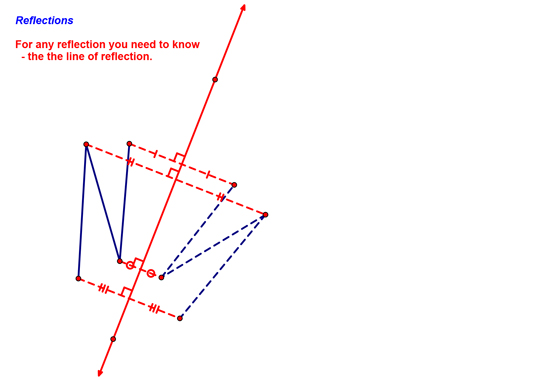

We then discussed reflections. For these, we needed a pre-image and a line over which we could reflect!
![](Reflections.jpg)

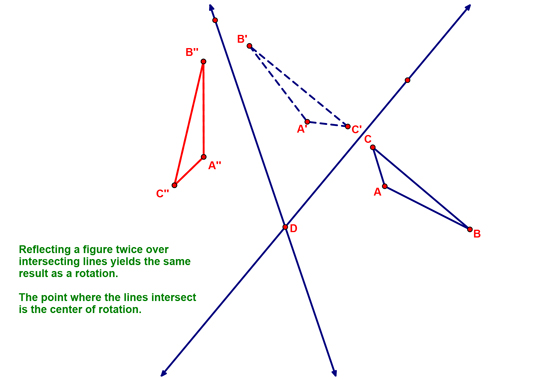

Next, I showed you how two reflections, over intersecting lines, give the same result as a rotation! Can you determine the degree the pre-image was rotated to form the image here? (It's 117°)
![Reflections as a rotation](ReflectionsAsRotation.jpg)

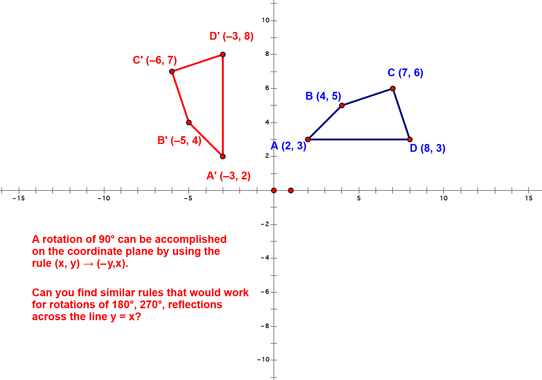

Next, we talked about some special rules that you can use when performing some transformations on the coordinate plane:
![Rules for Coordinate Plane Transformations](Rules.jpg)
The other rules, in case you were wondering, are (x, y)-->(-x, -y) for 180° rotation, (x, y)-->(y, -x) for 270° rotation and (x, y)-->(y, x) for a reflection across the line y = x.

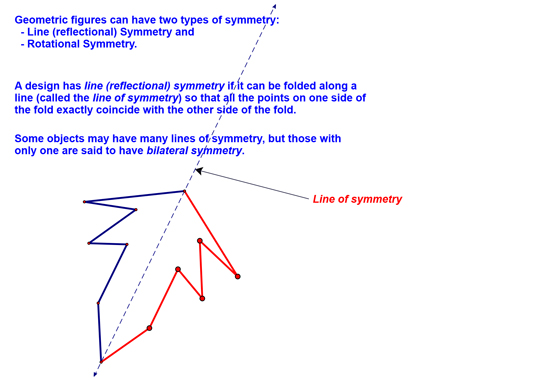

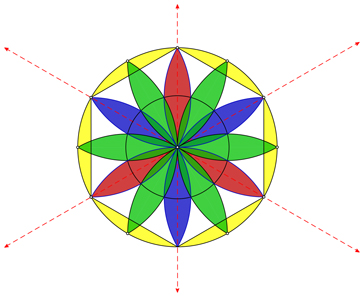

At this point, we discussed different types of symmetry...starting with line symmetry:
![Line Symmetry](LineSymmetry1.jpg)
![Line Symmetry Example 2](LineSymmetry2.jpg)

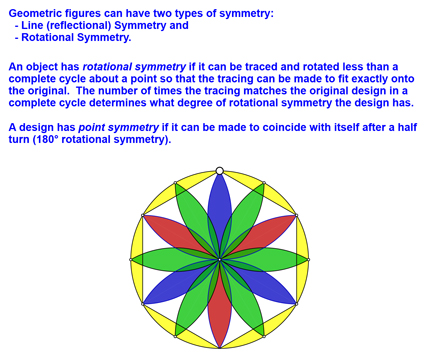

We FINALLY wrapped up by discussing rotational symmetry:
![Rotational Symmetry](Rotational1.jpg)
![Rotational Example 2](Rotational2.jpg)
Notice that the first example above has 120° rotational symmetry and the second example has point symmetry (180° rotational symmetry).
Whew! That was a lot for one day!
|
